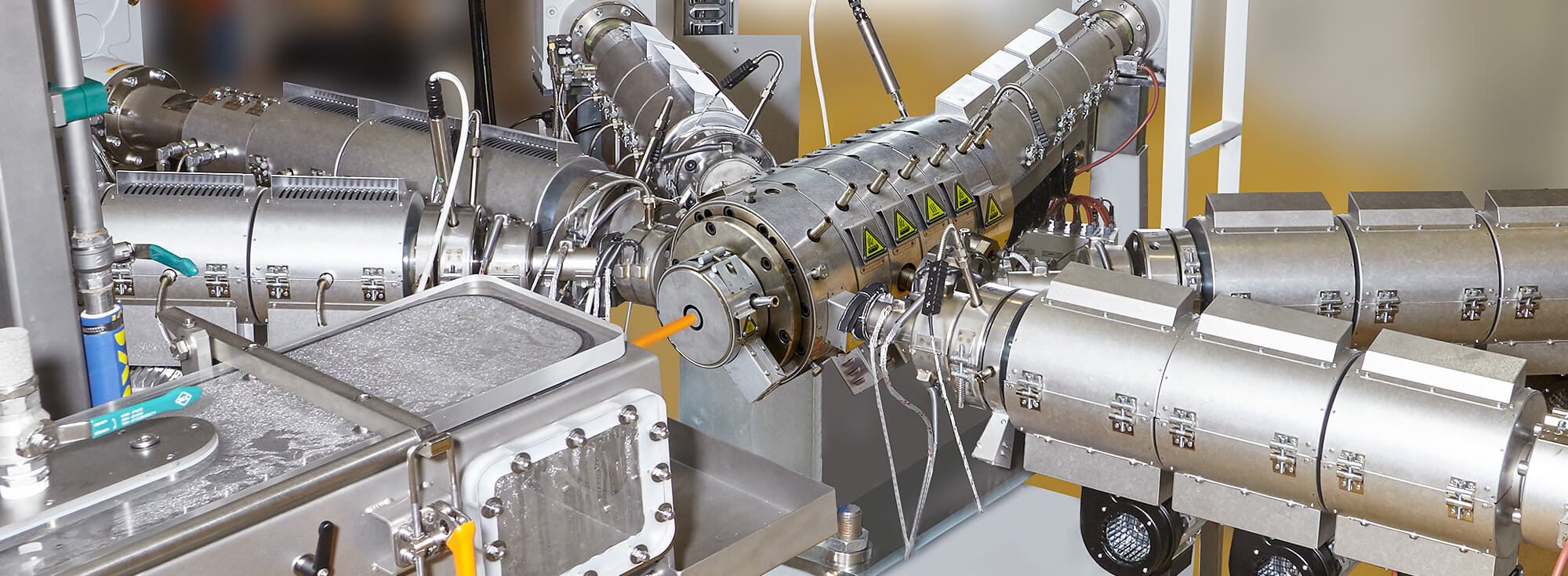

Multilayer Extrusion Lines

EXTRUDEX offers a wide range of custom-configurated turnkey extrusion lines for manufacturing of:

  • 5-layer pipe: layers configuration PP-R – PP-R+GF – PP-R – PP-R+GF – PP-R
  • 2-layer corrugated PA pipe
  • 3-layer composite pipe: PE-RT inner pipe – bonding agent – EVOH
  • 5-layer underfloor heating pipe: PE-RT inner pipe – bonding agent – EVOH – bonding agent – PE-RT or PE outer skin
  • 5-layer composite pipe: PE – bonding agent – aluminium foil – bonding agent – PE

Well-known manufacturers worldwide rely on quality solutions supplied by EXTRUDEX.

All EXTRUDEX extrusion lines carry CE marking certifying full compliance with corresponding EU standards.

Download Catalogue
6-layer extrusion line
  • for manufacturing of 6-layer automotive pipe
  • in O.D. range 4 – 18 mm
5-layer extrusion line
  • for manufacturing of 5-layer underfloor heating pipe
  • in O.D. range 8 – 25 mm
Multilayer extrusion line
  • for manufacturing of 5-layer pipe for sanitary applications
  • for hot/cold water piping
  • available in O.D. range up to 110 mm
Extrusion line for double-wall corrugated conduit
  • for manufacturing of double-wall corrugated protective conduit for cables, tubes, etc.
Multilayer extrusion line
  • for manufacturing of 5-layer underfloor heating pipe
  • PE-RT inner pipe – bonding agent – EVOH – bonding agent – PE-RT or PE outer skin,
  • in O.D. range 8 – 32 mm
5-layer pipe die head
  • for manufacturing of 5-layer underfloor heating pipe
  • PE-RT inner pipe – bonding agent – EVOH – bonding agent – PE-RT or PE outer skin,
  • in O.D. range 8 – 32 mm
Multilayer extrusion line
  • for manufacturing of 5-layer composite pipe:
  • PE – bonding agent – aluminium foil – bonding agent – PE
